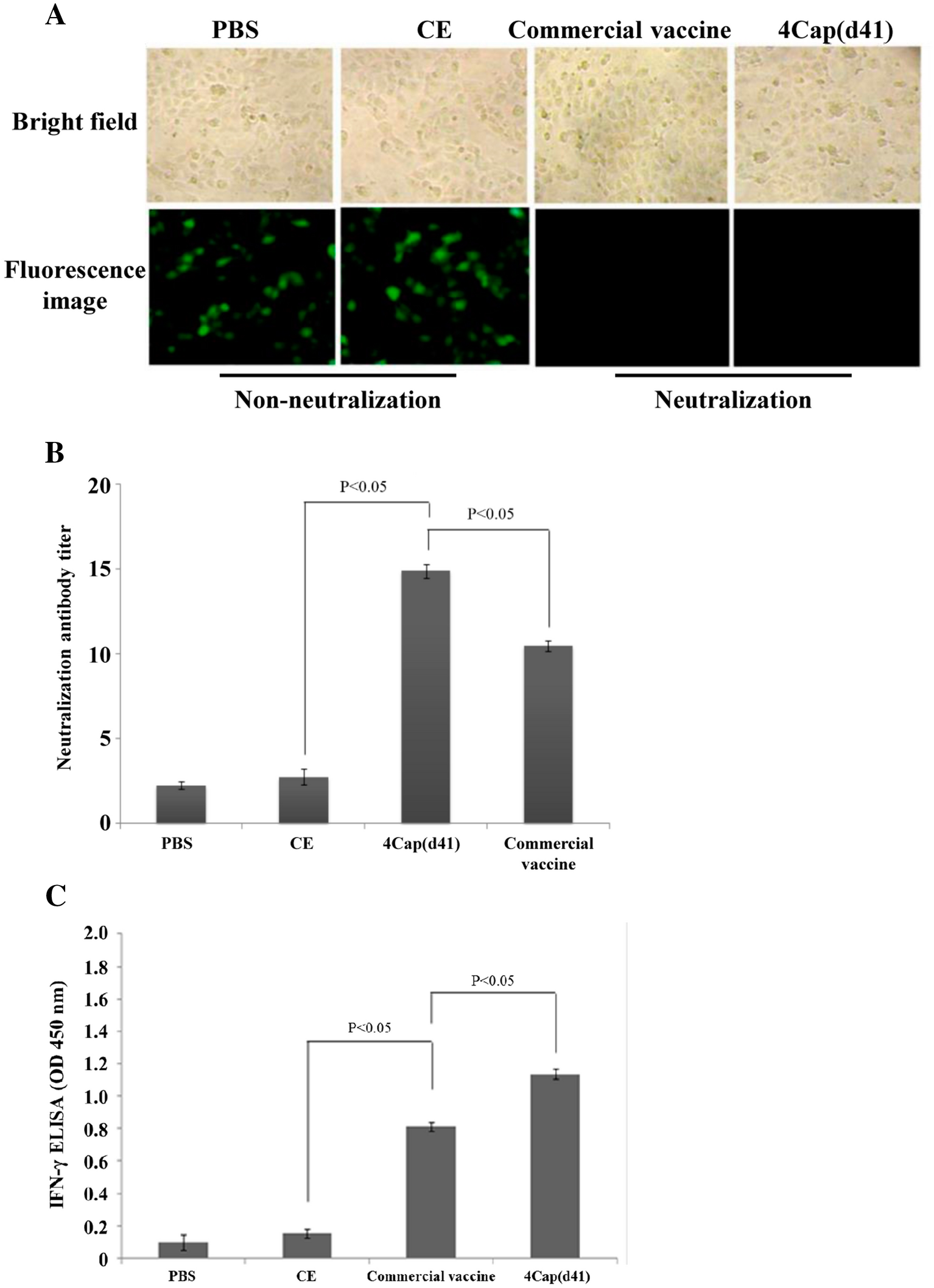

Figure 5
Serum neutralization (SN) titers and the level of IFN-γ in mice immunized with various immunogens. A The SN titers in mice induced by 4Cap(d41) and commercial vaccines. 5 × 107 Sf-9 cells were infected with the recombinant baculovirus BacDD-4Cap(d41) at an MOI of 10 for 3 days. Cell lysates were collected to prepare the 4Cap(d41) vaccine. Eight-week-old mice were vaccinated via intraperitoneal injection at weeks 0 and 2 with PBS, CE, 4Cap(d41), and commercial vaccines as formulated with complete and incomplete adjuvants. As negative controls, three mice were injected with PBS and CE (5 × 107 BacCE-infected Sf-9 cell lysates). Each mouse received one booster shot in week 2, and blood samples were taken at week 5 for the SN titer assay. B The fluorescence results were converted into neutralizing antibody titers and presented as a data chart (B). Data represent the mean ± SD. C Analysis of IFN-γ by ELISA was performed using the IFN-γ ELISA Kit. The value of OD405 nm was measured with an ELISA reader. Data represent the mean ± SD. A P value less than 0.05 was considered significant.
